Ahmed Sheets and Plates, a reputable manufacturer and supplier located in Safat, Kuwait, specializes in high-quality Stainless Steel 410 Sheets and Plates tailored to meet a variety of industrial needs. Renowned for their durability, precise finish, and outstanding corrosion resistance, these SS 410 products are crafted using cutting-edge technology and rigorous quality control measures. Ahmed Sheets and Plates guarantees reliable performance, competitive pricing, and prompt delivery, making them a go-to choice across different sectors. Their Stainless Steel 410 Sheets and Plates are perfect for applications that require strength, heat resistance, and reliability, establishing the company as a trusted partner for industries throughout Kuwait and beyond.
The composition of Stainless Steel 410 Sheets and Plates primarily includes chromium, iron, and carbon, resulting in a martensitic stainless steel grade with impressive mechanical properties. They provide good tensile strength, moderate corrosion resistance, and exceptional hardness after heat treatment. SS 410 showcases high wear resistance, decent ductility, and satisfactory impact strength. Its capability to endure high temperatures further boosts its suitability for challenging environments. These characteristics make Stainless Steel 410 Sheets and Plates a strong and versatile material option for a wide range of industrial applications.
| Standard | ASTM A240, ASME SA240 |
| Dimensions | ASTM, ASME, and API |
| Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Thickness | 4mm-100mm |
| Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

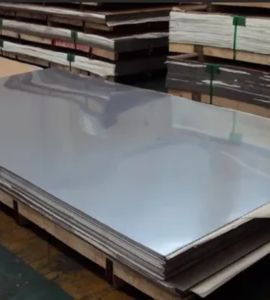

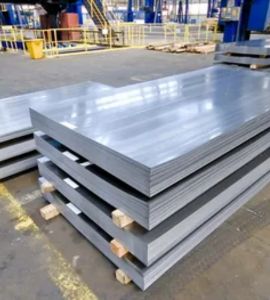

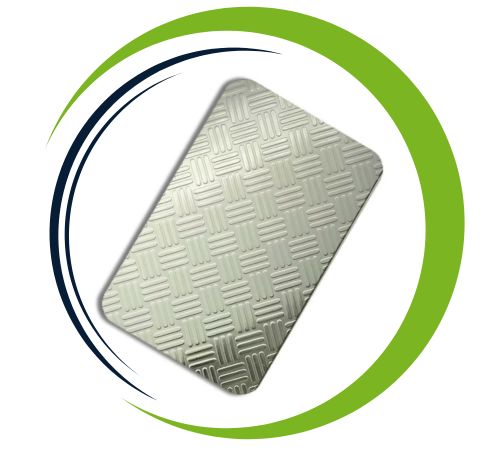

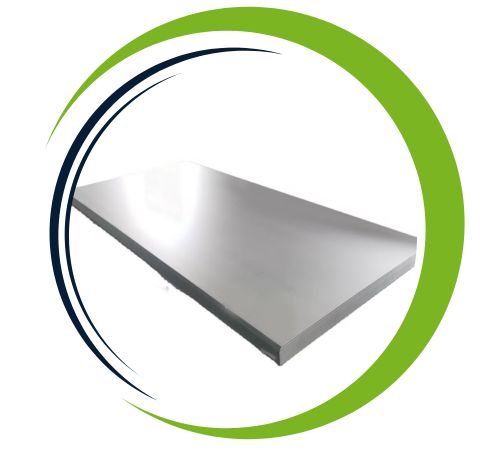

| Surface Finish | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, chequered, embossed, hairline, sand blast, Brush, etching, Hot rolled plate (HR), Cold rolled sheet (CR), SATIN (Met with Plastic Coated) etc |

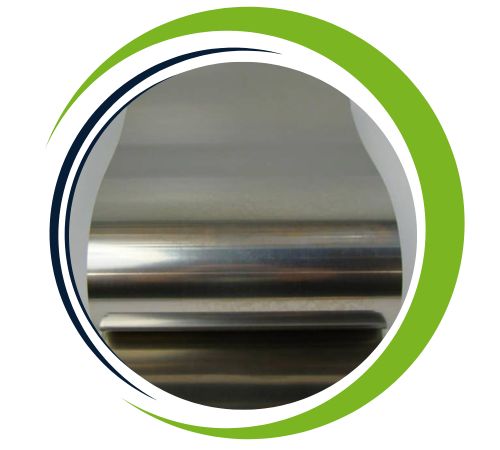

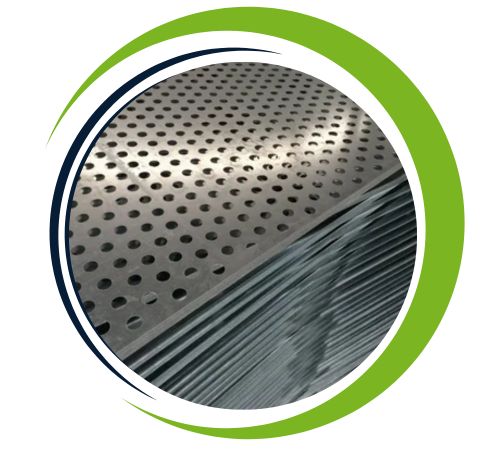

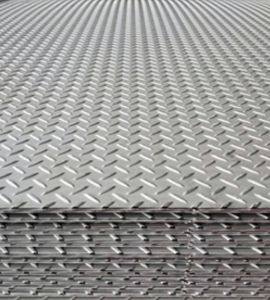

| Form | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | Cr | Mn | Si | Ni | C | P | S | Fe |
| SS 410 | 11.50 – 13.50 | 0.0 – 1.50 | 0.0 – 1.00 | 0.0 – 0.75 | 0.08 – 0.15 | 0.0 – 0.04 | 0.0 – 0.02 | Balance |
| Tensile Strength Ksi (Mpa) | 0.2% Offset Yield Strength Ksi (Mpa) | Elongation, % in 2″ (51 mm) | Hardening Response HRC | HRB |
| 65 (450) – 74 (510) | 30 (205) – 42 (290) | 20 – 34 | 38-45 | 82-96 |
| Grade | WERKSTOFF NR. | UNS | AISI | BS | SIS | EN | JIS | AFNOR |
| SS 410 | 1.4006 | S41000 | 410 | 410S21 | 2302 | X12Cr13 | 410 | Z10C13/Z13C13 |
| Grade | Density (kg/m3) | Elastic Modulus (GPa) | Mean Coefficient of Thermal Expansion (m/m/0C) | Thermal Conductivity (W/m.K) | Specific Heat 0-1000C (J/kg.K) | Electrical Resistivity (n.m) | |||
| 0-1000C | 0-3150C | 0-5380C | at 1000C | at 5000C | |||||
| 410 | 7750 | 200 | 9.9 | 11.4 | 11.6 | 24.9 | 28.7 | 460 | 570 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 410 sheets and plates offer a variety of benefits including excellent hardness and corrosion resistance, making them ideal for hard-wearing components such as cutlery, fasteners and valves especially in soft corrosive environments moderate corrosion resistance due to chromium content. Their high strength and durability enable them to be used in buildings and mechanical components. In addition, they can be heat treated, increasing the mechanical properties. Simple and affordable devices further enhance their appeal, making them a great choice for industries such as automotive, aerospace and construction.
Across various industries, Stainless Steel 410 Sheets and Plates are favored for their strength, hardness, and heat resistance. They are frequently used in the production of valves, turbine blades, nozzles, and pump components where durability is crucial. The automotive industry utilizes them for exhaust systems, brackets, and structural components, while the construction sector depends on them for architectural features and support structures. Moreover, SS 410 is an excellent choice for industrial equipment, petrochemical processing, and food processing machinery due to its corrosion resistance and ease of fabrication, making it a versatile and reliable material for numerous applications.
