Ahmed Sheets and Plates is a prominent manufacturer and supplier located in Safat, Kuwait, known for its top-notch stainless steel products. With a solid reputation for reliability and excellence, the company offers a diverse array of stainless steel items, including the highly regarded Stainless Steel 405 Channel. This channel is celebrated for its durability and resistance to corrosion, making it a popular choice in various industrial applications. Ahmed Sheets and Plates is committed to delivering exceptional stainless steel solutions, ensuring that every product meets high standards of quality and customer satisfaction for clients throughout Kuwait and beyond.

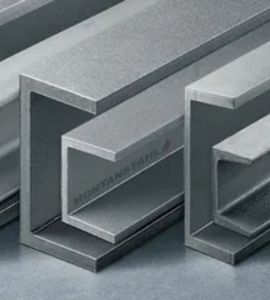

Stainless Steel 405 Channel is a ferritic stainless steel primarily composed of chromium (11.5-14.5%) and carbon (0.08% max), which provides excellent oxidation resistance at elevated temperatures. It also contains small amounts of manganese (1.00%), silicon (1.00%), and nickel (0.50%). This alloy offers good weldability and formability. Its mechanical properties include a tensile strength of approximately 485 MPa, yield strength of 170 MPa, and elongation of 22%. Stainless Steel 405 is ideal for high-temperature environments where resistance to oxidation and low carbon content is required.
| Specifications | ASTM A276, A484 / ASME SA276, SA484 |
|---|---|
| Standard | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Channel | 5mm to 9mm |
| Channel | 40mm*20mm~300mm*300mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |
| Element | Content (%) |
|---|---|
| Iron, Fe | 85 |
| Chromium, Cr | 13 |
| Manganese, Mn | 1.0 |
| Silicon, Si | 1.0 |
| Aluminum, Al | 0.2 |
| Carbon, C | 0.080 |
| Phosphorous, P | 0.040 |
| Sulfur, S | 0.030 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 448 MPa | 65000 psi |
| Yield strength (@strain 0.200 %/) | 276 MPa | 40000 psi |
| Elastic modulus | 200 GPa | 29007 ksi |
| Poisson’s ratio | 0.27-0.30 | 0.27-0.30 |
| Elongation at break (in 50 mm) | 25.00% | 25.00% |
| Izod Impact (@20°C/68°F) | 41.0 J | 30.2 ft-lb |
| Hardness, Brinell (converted from Rockwell B hardness) | 131 | 131 |
| Hardness, Knoop (converted from Rockwell B hardness) | 146 | 146 |
| Hardness, Rockwell B | 75 | 75 |
| Hardness, Vickers (converted from Rockwell B hardness) | 140 | 140 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless Steel 405 is a martensitic stainless steel that boasts a high chromium content (12-14%) along with moderate levels of carbon. It also includes trace amounts of manganese, silicon, and nickel, which contribute to its strength and toughness. This alloy is particularly noted for its resistance to oxidation and scaling at high temperatures. Its mechanical properties feature a tensile strength ranging from 600 to 850 MPa, a yield strength between 300 and 500 MPa, and commendable ductility. It can be heat-treated to boost its hardness, making it ideal for applications that demand strength and heat resistance while still being easy to work with.
Stainless Steel 405 channels offer several key advantages, particularly in high-temperature environments. Their high chromium content provides excellent oxidation resistance, making them ideal for applications exposed to elevated temperatures, such as power generation and chemical processing. The material also exhibits good weldability and formability, allowing for easy fabrication into complex shapes. Stainless Steel 405 is highly resistant to corrosion and scaling, ensuring long-term durability. Its low carbon content reduces the risk of carbide precipitation, which enhances its performance in high-heat conditions, offering a reliable and cost-effective solution for various industrial applications.
Yes, we offer custom sizes for Stainless Steel 405 Channel to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
The Stainless Steel 405 Channel finds extensive use in industries that require high strength, durability, and corrosion resistance at elevated temperatures. You’ll often see it in applications such as heat exchangers, furnace components, and exhaust systems. Thanks to its excellent oxidation resistance, it’s also well-suited for high-temperature environments, including petrochemical plants, chemical processing facilities, and power generation sectors. Moreover, its ability to maintain mechanical properties under stress makes it a great fit for structural applications, including frame supports, construction projects, and heavy-duty machinery in industrial environments.
