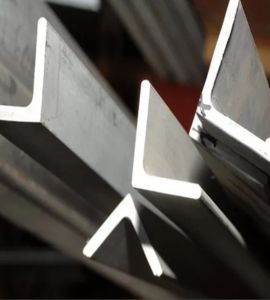

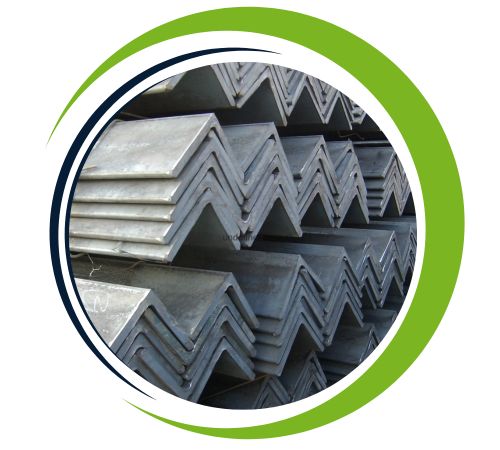

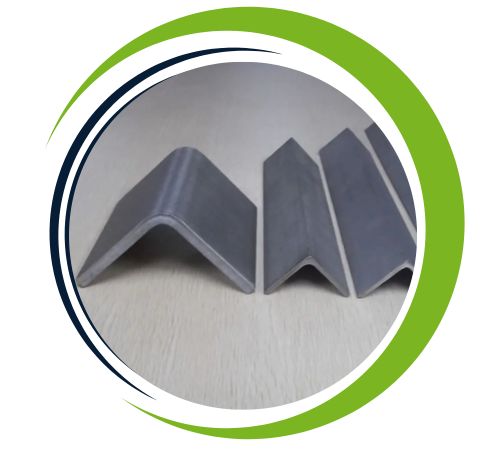

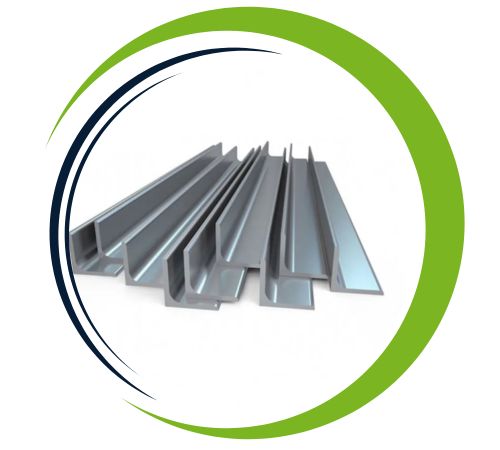

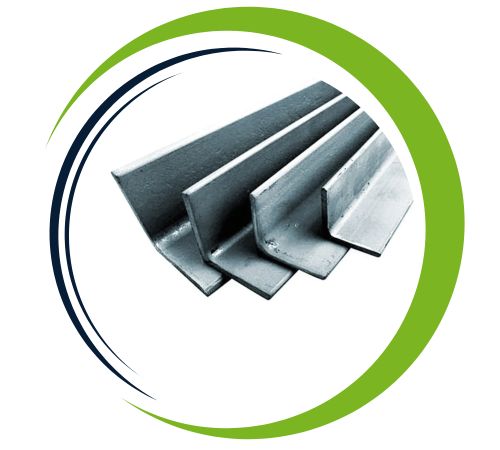

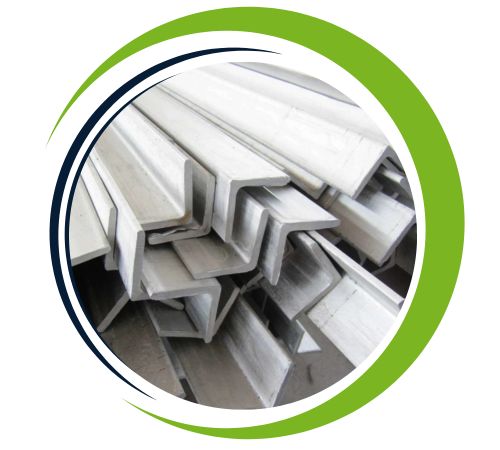

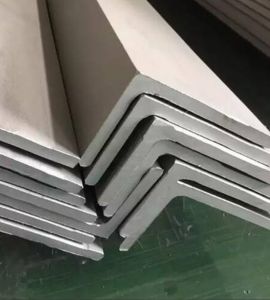

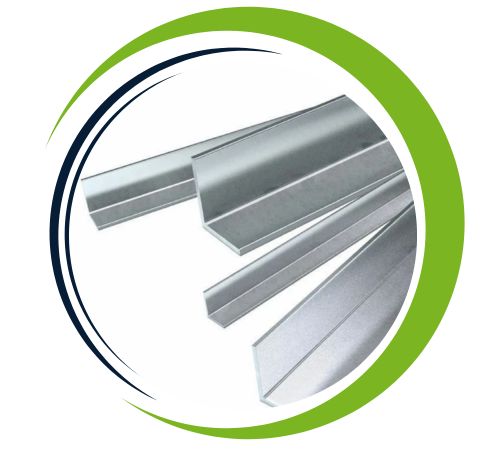

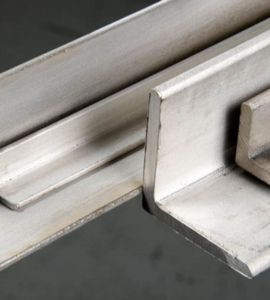

Ahmed Sheets and Plates, located in Safat, Kuwait, is a well-known manufacturer and supplier of high-quality Stainless Steel 347 Angles suitable for working in critical conditions of high-temperature and corrosive media. Manufactured with stabilized austenitic stainless steel, the SS 347 Angle Bars offer outstanding resistance to intergranular corrosion and structural strength at elevated temperatures. Ahmed Sheets and Plates ensure that all fabrications are accurate, the finish is superior, and international quality standards are strictly followed. Stainless Steel 347 Angle offered by the company finds wide applications in several industries that need durable, heat-resistant machinery and equipment for long-term performance. The company implements the latest technology to manufacture products with guaranteed consistent quality to meet industrial and structural needs.
Stainless Steel 347 Angle is an austenitic stainless steel alloy that is stabilized by the addition of niobium and tantalum. It mainly consists of chromium (17–19%), nickel (9–13%), and small additions of columbium/niobium to prevent carbide precipitation. This composition improves resistance to intergranular corrosion after welding or heat exposure. SS 347 has excellent mechanical properties, comprising tensile strength, good creep resistance, and stable performance at high temperatures. It also shows good toughness and corrosion resistance in a wide range of environments, making it suitable for demanding industrial applications that require long-term structural integrity and thermal stability.
| Specifications | ASTM A 276/A 276M,A 484/A 484M,A 564/A 564M,A 582/A582M,A 638 /A 638M,A705/A705M |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| SS 347 Angle | 5mm to 9mm |
| Thickness | 3.0mm – 120mm |
| Length | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | SS 347 |
|---|---|
| C | 0.08 max |
| Mn | 2 max |
| Si | 1 max |
| P | 0.045 max |
| S | 0.030 max |
| Cr | 17 – 20 |
| Cb | 10xC – 1.10 |
| Ni | 9.0 – 13.0 |
| Fe | 62.74 min |
| Grade | SS 347 |
|---|---|
| Density | 8.0 g/cm3 |
| Melting Point | 1454 °C (2650 °F) |
| Tensile Strength | Psi – 75000 , MPa – 515 |
| Yield Strength (0.2%Offset) | Psi – 30000 , MPa – 205 |
| Elongation | 35% |
| STANDARD | SS 347 |
| WERKSTOFF NR. | 1.4550 |
| UNS | S34700 |
| JIS | SUS 347 |
| BS | – |
| GOST | 08Ch18N12B |
| AFNOR | – |
| EN | X6CrNiNb18-10 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Stainless steel 347 Angle for excellent corrosion resistance, especially in hot environments and harsh chemicals. Stabilization is made of columbium and tantalum, preventing carbide precipitation and ensuring high intergranular corrosion resistance. This makes it ideal for high-stress applications in the aerospace, petrochemical, and power plant industries. It has good weldability, formability and high heat resistance. Stainless steel 347 provides durability and performance under extreme conditions, making it a reliable choice for construction and industrial applications requiring high corrosion and temperature resistance.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 347 Angles are widely used in the industries that require excellent heat and corrosion resistance. Examples include high-temperature chemical process equipment, refinery components, and heat exchangers. Because of the stability against intergranular corrosion, these steels are suitable for use in welded structures under extreme conditions. SS 347 Angles are also utilized in aerospace parts, food processing equipment, pharmaceutical equipment, and power generation systems. In construction, they act as strong support structures and framing materials. The reliability of SS 347 Angles in high-stress and elevated-temperature conditions has made them a favored choice across petrochemical, marine, and industrial manufacturing sectors.
