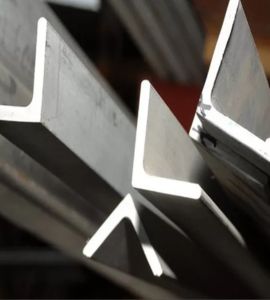

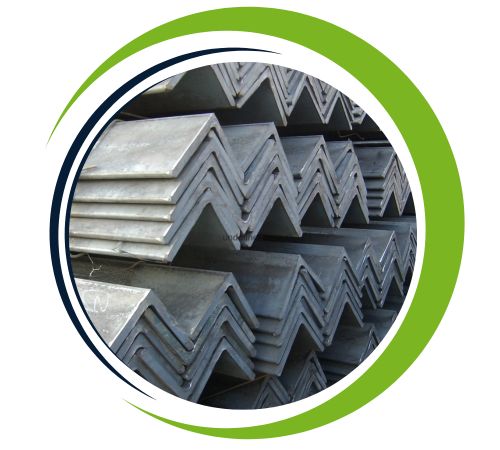

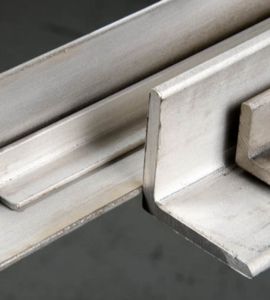

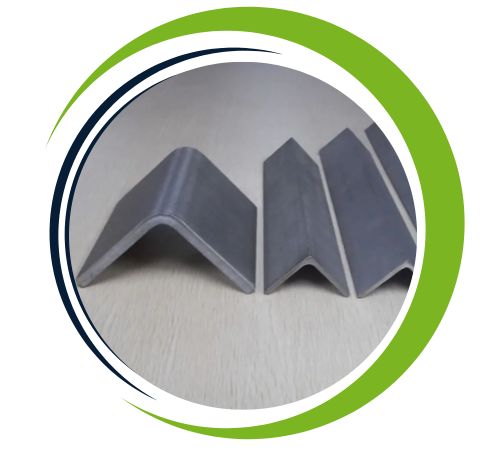

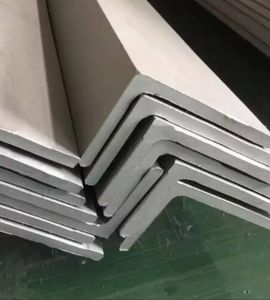

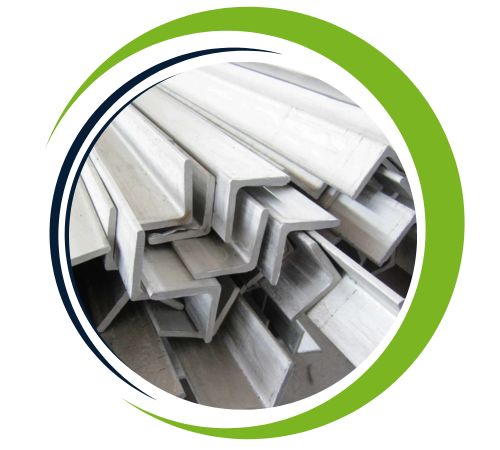

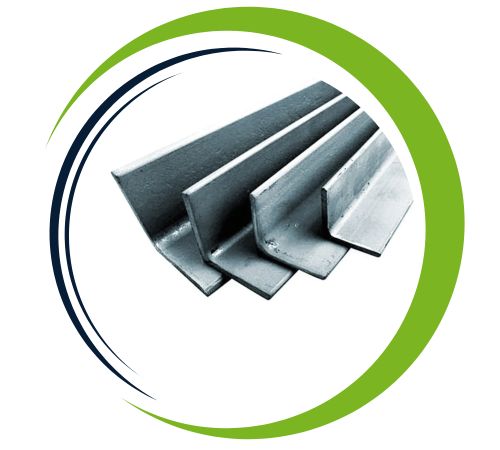

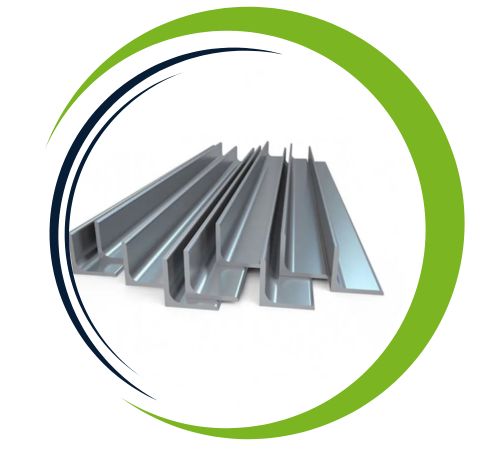

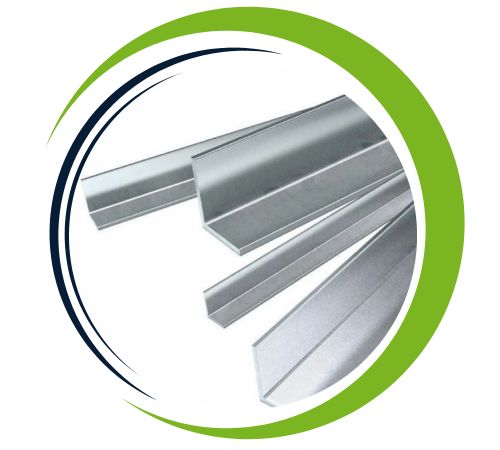

Ahmed Sheets and Plates, a top-notch manufacturer and supplier based in Safat, Kuwait, specializes in high-quality Stainless Steel 316L Angles. These angles are celebrated for their outstanding corrosion resistance, strength, and durability. Crafted to meet international standards, they deliver reliable performance across a variety of industrial, marine, and structural applications. Perfect for environments that encounter chlorides, chemical agents, and moderate temperatures, Stainless Steel 316L Angles ensure long-lasting reliability and structural integrity. With a commitment to precision, quality, and timely delivery, Ahmed Sheets and Plates consistently provides superior stainless steel products that blend performance, versatility, and customer satisfaction.
Made from austenitic stainless steel with added molybdenum, Stainless Steel 316L Angles boast enhanced resistance to pitting, crevice corrosion, and general corrosion in harsh environments. Their mechanical properties include impressive tensile and yield strength, moderate ductility, and toughness, making them ideal for fabrication, welding, and forming processes. These angles maintain their shape under mechanical and thermal stress while preserving excellent corrosion-resistant qualities, ensuring dependable performance even in demanding situations.
Specifications : ASTM A276, ASTM A479 / ASME SA276, ASME SA479
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
The stainless steel 316L angle offers many advantages, including exceptional corrosion resistance, especially in chloride zones, making it ideal for marine and chemical applications Its low carbon content enhances its weldability and reduces risk of carbide precipitation. This material is very durable and maintains strength and performance at high temperatures. Stainless steel 316L is also non-magnetic and offers excellent formability, ensuring versatility in construction and construction applications. It is easy to maintain, offers long-term reliability and low maintenance costs, making it desirable for many businesses.
| THICKNESS | ||||||
|---|---|---|---|---|---|---|
| Size(mm) | 3 mm | 4 mm | 5 mm | 6 mm | 8 mm | 10 mm |
| 25×25 | 1.13 | 1.47 | 1.80 | 2.11 | 2.69 | — |
| 30×30 | 1.37 | 1.79 | 2.20 | 2.59 | 3.33 | — |
| 32×32 | 1.46 | 1.92 | 2.20 | 2.59 | 3.33 | — |
| 35×35 | 1.61 | 2.11 | 2.60 | 3.07 | 3.97 | — |
| 38×38 | 1.75 | 2.30 | 2.84 | 3.36 | 4.35 | — |
| 40×40 | 1.85 | 2.43 | 3.00 | 3.55 | 4.61 | — |
| 45×45 | — | 2.75 | 3.40 | 4.03 | 5.25 | — |
| 50×50 | — | — | 3.80 | 4.51 | 5.89 | 7.20 |
| 60×60 | — | — | 4.60 | 5.47 | 7.17 | 8.80 |
| 63×63 | — | — | 4.84 | 5.76 | 7.55 | 9.28 |
| 65×65 | — | — | 5.00 | 5.95 | 7.81 | 9.60 |
| 70×70 | — | — | — | 6.43 | 8.45 | 10.40 |
| 75×75 | — | — | — | 6.91 | 9.09 | 11.20 |
| 80×80 | — | — | — | 7.39 | 9.73 | 12.00 |
| 90×90 | — | — | — | 8.35 | 11.01 | 13.60 |
| 100×100 | — | — | — | 9.31 | 12.29 | 15.20 |
Stainless Steel 316L Angles find their place in industries that require materials that are both corrosion-resistant and durable. Common applications include chemical processing equipment, marine structures, pharmaceutical machinery, food processing equipment, architectural frameworks, and industrial machinery. They are also utilized in piping supports, offshore structures, and various fabrication projects where long-term durability, corrosion resistance, and reliability are crucial. The blend of strength, corrosion resistance, and versatility makes Stainless Steel 316L Angles the go-to choice for high-performance and demanding industrial and structural applications.
