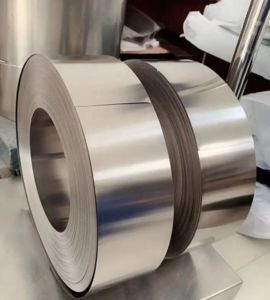

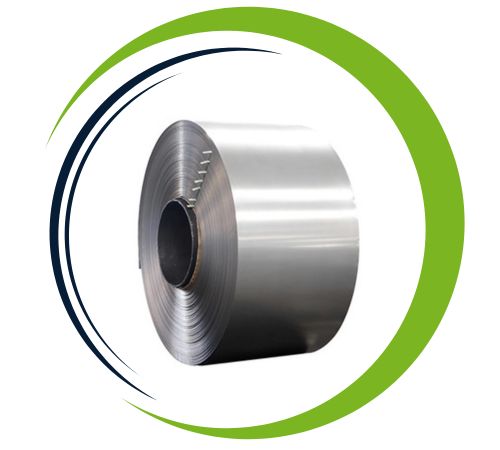

Ahmed Sheets and Plates stands out as a trusted manufacturer and supplier of top-notch Monel 400 Coils in Safat, Kuwait. Their products are celebrated for their remarkable corrosion resistance, durability, and precision engineering. The company is dedicated to delivering high-performance nickel-copper alloy coils that not only meet global industrial standards but also excel in demanding applications. Thanks to their cutting-edge production technology and a talented technical team, Ahmed Sheets and Plates guarantees excellent dimensional accuracy, consistent quality, and a long service life for every Monel 400 Coil. Their commitment to customer satisfaction, timely delivery, and the use of premium materials has earned them a reputation as a reliable source for robust and efficient Monel alloy products.
Monel 400 Coils are primarily made up of a nickel-copper alloy, featuring about 63% nickel and 28–34% copper, along with trace amounts of iron, manganese, silicon, sulfur, and carbon. This unique composition gives them outstanding mechanical properties, such as high tensile strength, excellent ductility, and impressive toughness, even in low temperatures. Monel 400 is known for its superior resistance to seawater, acids, alkalis, and various corrosive substances. Its reliable thermal conductivity, low magnetic permeability, and exceptional resistance to stress-corrosion cracking make these coils perfect for challenging operational environments that demand long-term stability and mechanical reliability.
Specifications : ASTM B127 / ASME SB127
Width : 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length : 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Thickness : 0.3 mm to 120 mm
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.

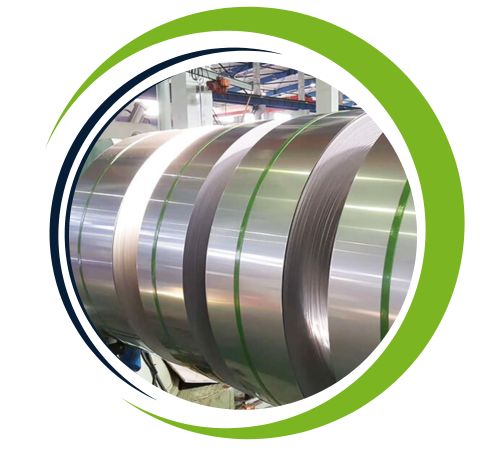

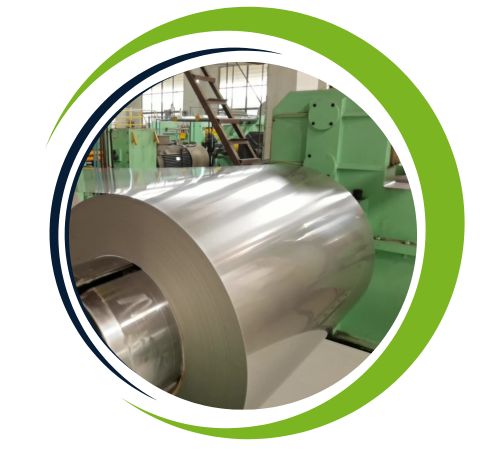

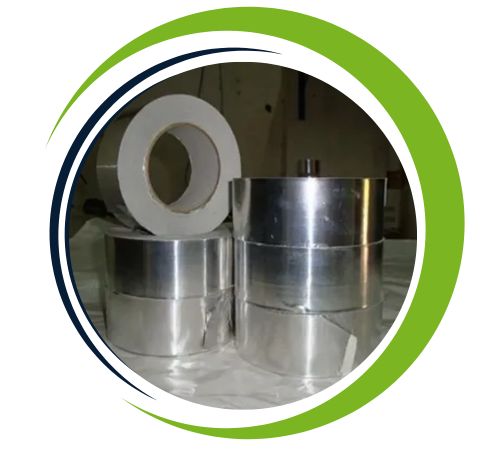

Finish : Hot rolled (HR), Cold rolled coils (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

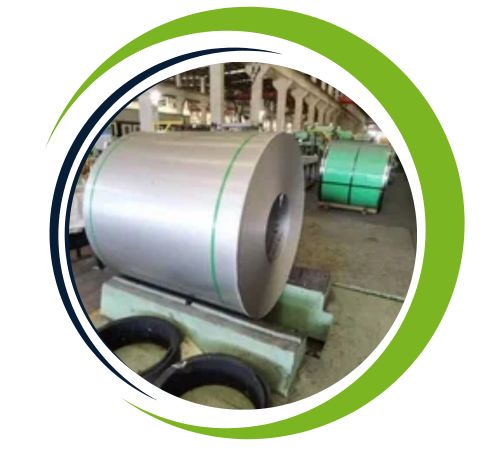

Form : Plain Coils, Shim Coils, Strip
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |

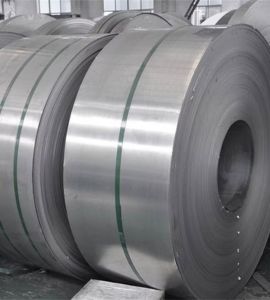

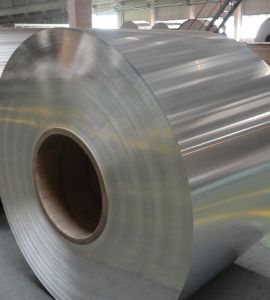

Monel 400 coil/slitting coil offers excellent corrosion resistance, particularly in acidic environments, making it ideal for marine, chemical, and oil industries. Even at elevated temperatures, it provides high strength, toughness, and durability. The material’s resistance to pitting and stress-corrosion cracking ensures long-term reliability. Its ease of fabrication and weldability make it suitable for various applications, offering versatility in industrial processes. Monel 400 coil/slitting coil is an excellent choice for demanding environments due to its superior mechanical properties and corrosion resistance.
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Monel 400 | 2.4360 | N04400 | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 | NU-30M | NiCu30Fe |
Monel 400 Coils find their place in a variety of industries that require excellent corrosion resistance, mechanical strength, and thermal stability. They are frequently used in marine engineering, shipbuilding, offshore platforms, and desalination systems, thanks to their strong performance in seawater environments. In chemical and petrochemical plants, these coils are essential for heat exchangers, pumps, valves, and process equipment that come into contact with harsh chemicals. The oil and gas industry also relies on Monel 400 Coils for refineries, pipelines, and processing units. Additionally, they are utilized in electrical components and aerospace applications.
