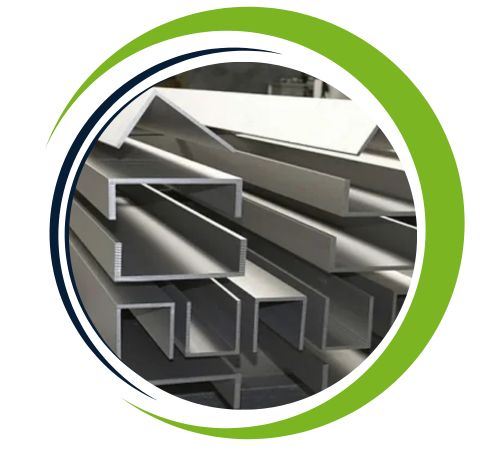

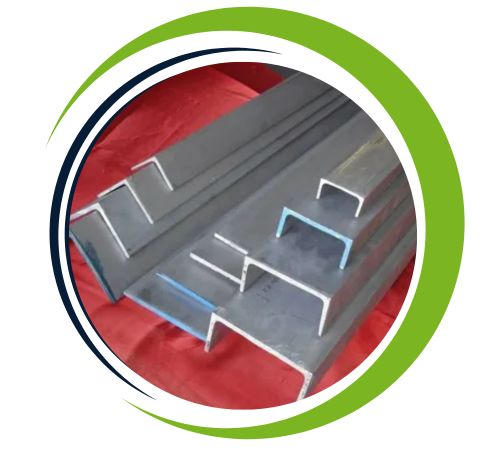

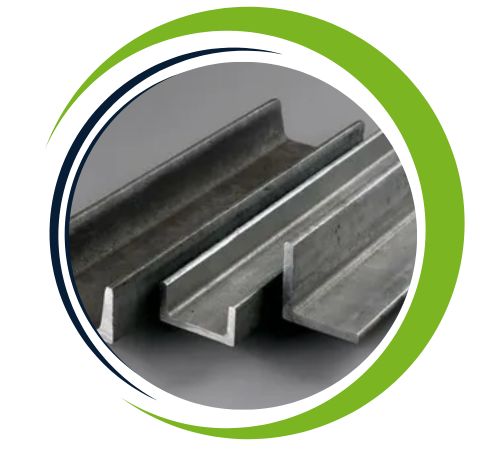

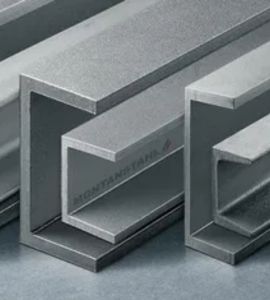

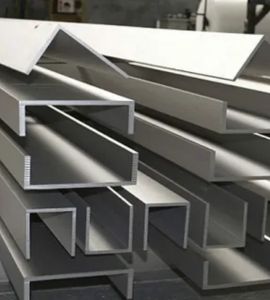

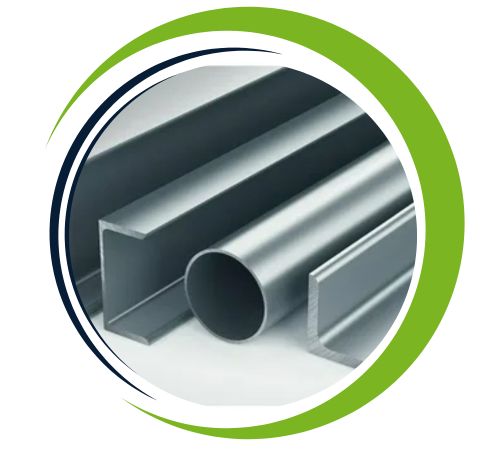

Ahmed Sheets and Plates is a reputable manufacturer and supplier of top-notch Inconel 718 Channels based in Safat, Kuwait. They offer premium nickel-chromium alloy structural components that are celebrated for their incredible strength, resistance to corrosion, and ability to perform well under high temperatures. The company takes pride in crafting precisely engineered Inconel 718 Channels that adhere to international industrial standards, ensuring they deliver reliable performance even in the most demanding applications. With state-of-the-art manufacturing facilities and a talented technical team, Ahmed Sheets and Plates guarantees consistent quality, accurate dimensions, and a long service life for every product. Their commitment to quality, timely delivery, and customer satisfaction has established them as a trusted source for high-performance Inconel structural components.
Inconel 718 Channels are primarily made up of nickel, chromium, and iron, with added elements like molybdenum, niobium, and trace amounts of cobalt, titanium, and aluminum to boost strength, corrosion resistance, and thermal stability. These channels are known for their excellent tensile strength, high ductility, and impressive toughness, even at elevated temperatures. Inconel 718 offers remarkable resistance to oxidation, stress-corrosion cracking, and chemical attacks, making it a perfect choice for applications that demand durability in harsh conditions. Its outstanding fatigue resistance, thermal stability, and mechanical reliability ensure it performs well over the long haul in challenging industrial environments.
Specifications : ASTM B637 / ASME SB637
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel 718 | 2.4668 | N07718 |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | 0.015max | 0.30 max | – | 50.00 – 55.00 | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockiest of high-quality metal products, including sheets, plates, coils, foils, angles, channels, circles, and slitting coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 718 channels offer several key advantages, making them highly suitable for demanding applications. The alloy provides exceptional resistance to oxidation, corrosion, and scaling at elevated temperatures, ensuring longevity and durability. It maintains excellent strength and stability, even at high temperatures up to 700°C, making it ideal for aerospace and industrial applications. Inconel 718 also exhibits superior weldability, fatigue resistance, and formability. Its ability to withstand extreme thermal cycling and mechanical stress further enhances its reliability, ensuring optimal performance in harsh environments like gas turbines, chemical processing, and high-temperature manufacturing.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Channels (kilogram/meter) | Inconel 718 Channels Sizes (all Dimensions in milimeter) | Approx Weight Inconel 718 Channels (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Yes, we offer custom sizes for Inconel 718 Channel to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Inconel 718 Channels find their place in various industries that require high strength, corrosion resistance, and heat tolerance. They’re commonly used in aerospace structures, gas turbines, jet engines, and power generation units. In chemical and petrochemical plants, these channels serve as structural supports, equipment frames, and piping systems that come into contact with aggressive chemicals. Additionally, Inconel 718 Channels are well-suited for marine engineering, nuclear reactors, and industrial machinery that operate under high stress and temperature conditions. Their durability, formability, and resistance to wear make them an excellent choice for demanding applications.
