Ahmed Sheets and Plates, located in Safat, Kuwait, has earned a solid reputation as a reliable manufacturer and supplier of top-notch industrial metals, with a particular focus on Inconel 601 sheets and plates. The company is well-regarded for its unwavering commitment to quality and precision, providing sturdy metal solutions across a variety of industries. Their Inconel 601 sheets and plates are meticulously crafted to adhere to international standards, boasting exceptional resistance to oxidation, heat, and corrosion. Thanks to advanced manufacturing techniques and strict quality control measures, each product is designed to deliver outstanding performance, durability, and reliability, making them perfect for high-temperature and demanding industrial applications.
Inconel 601 is a nickel-chromium alloy celebrated for its impressive strength, excellent resistance to oxidation, and remarkable durability even at elevated temperatures. This alloy primarily consists of nickel and chromium, with trace amounts of iron, cobalt, manganese, and silicon to boost its mechanical properties. When it comes to performance, Inconel 601 sheets and plates showcase high tensile strength, excellent creep resistance, and superior toughness. The alloy maintains its shape under thermal stress and can endure prolonged exposure to harsh oxidizing and corrosive environments. Its unique blend of corrosion resistance, strength, and formability makes it a dependable choice for challenging industrial applications.

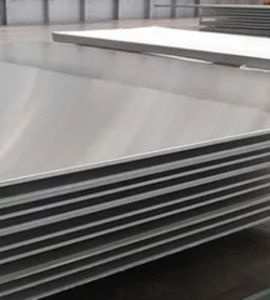

| 601 Sheets & Plates Specifications | ASTM B168 / ASME SB168, BS EN 10088-2, en 10028-7, IS 6911 |
|---|---|
| 601 Sheets & Plates Dimension Standard | MSRR, AMS, BS, JIS, AISI, ASTM, GB, DIN, EN, etc |

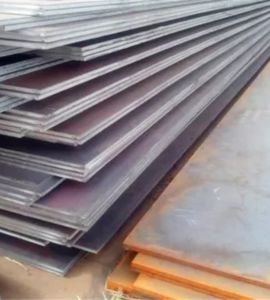

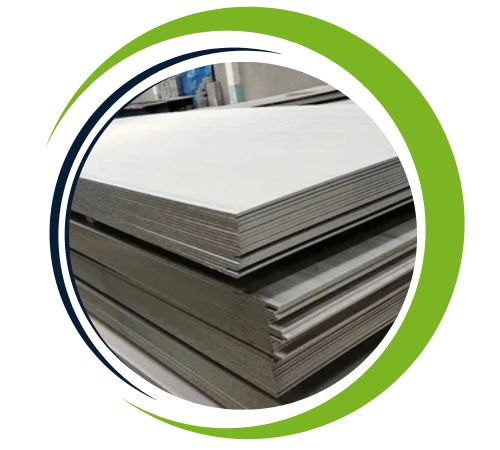

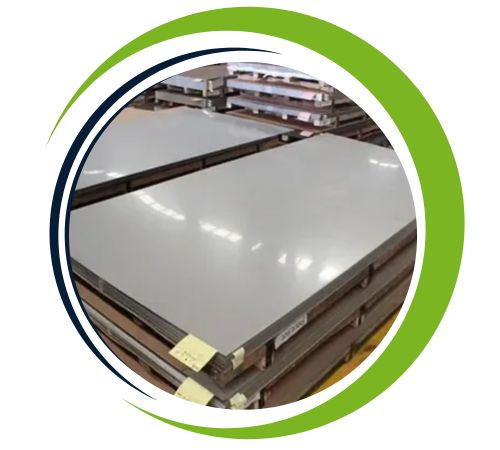

| Alloy 601 Sheets & Plates Size Range | Cold rolled ASME SB168 Grade 601 Inconel Sheet 0.5-6.4 mm Hot rolled ASME SB168 Grade 601 Inconel Sheet 3.0–10.0 mm |
| 601 Inconel Sheets & Plates Width | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Inconel 601 Sheets & Plates Length | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Inconel 601 Sheets & Plates Thickness | 0.3 mm to 120 mm |
| International Standard of Inconel 601 Sheets & Plates | ASTM A480 ASTM A959 ASME IID EN ISO 9445 EN ISO 18286 EN 10051 EN 10088-1 ISO 15510 |
| Tolerances (width / thickness) of Inconel 601 Sheets & Plates | EN 10258/ DIN 59381) EN 10151 ASME SB168 601 Inconel Strips EN 10088 SA -240-601 Strips |
| Finish of Inconel 601 Sheets & Plates | 2B, 2D, BA NO (8), Cold rolled sheet (CR), Hot rolled plate (HR), SATIN (Met with Plastic Coated), No.1 finish hot rolled, 1D, 2B, No.4, BA, 8K, satin, hairline, brush, mirror etc. |
| Hardness | Half Hard, Soft, Hard, Quarter Hard, Spring Hard |

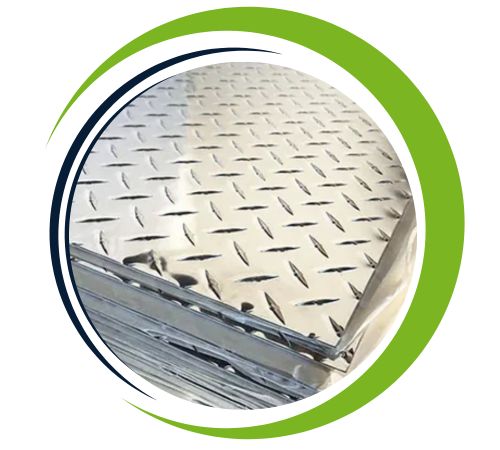

| Form | Sheet, Plate, Strip, Flats, Clad Plate, Coils, Foils, Plain Sheet, Flat Shim, Flat Sheet, Shim Sheet, Rolling Sheet, Rolling Plate, Rolls, Blank (Circle), soft annealed, descaled, tread plate, sheared, annealed, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Dealers & Distributor of | SAIL, ESSAR, JINDAL, TATA, BHUSHAN, INDIAN, POSCO, JISCO, TISCO, LISCO, BAOSTEEL IMPORTED material |
| Inconel 601 Profiling | Plasma Plate Cutting Laser Plate Cutting Oxy-propane Flame Cutting |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.00 max | 0.50 max | 0.015max | 1.00 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 sheets and plates offer numerous advantages, making them ideal for high-temperature and corrosive environments. They exhibit exceptional oxidation and carburization resistance, ensuring long-term durability in extreme conditions. The alloy maintains excellent strength and stability at elevated temperatures, making it suitable for use in furnaces, gas turbines, and chemical processing. Inconel 601 also demonstrates outstanding resistance to sulfur-containing environments and has excellent weldability. Additionally, its high creep-rupture strength and resistance to scaling make it a reliable choice for industries demanding both mechanical integrity and corrosion resistance.
Yes, we offer custom sizes for Inconel 601 Sheets and Plates to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Plate Surface finish | Gauge (in) | Width (max in) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed Plate | 10–24 | 72* |
| 2D – Cold rolled, heat treated, pickled plate | 12–24 | 60 |
| BA Mexinox only | 18–28 | 48 |
| Polished plate (not brushed) | 11–24 | 60 |
| Temper rolled plate Mexinox only | 13–29 | 48 |
| Plate Surface finish | Thickness (mm) | Width (max mm) |
|---|---|---|
| 2B – Cold rolled, heat treated, pickled, skin passed plate | 0.25–8.0 | 2032 |
| 2D – Cold rolled, heat treated, pickled plate | 0.4–6.35 | 1524 |
| 2E – Cold rolled, heat treated, mechanically descaled plate | 0.4–8.0 | 2032 |
| 2R – Cold rolled, bright annealed plate | 0.25–3.5 | 1524 |
| 2H – Work hardened plate | 0.4–6.35 | 1524 |
| Polished, brushed plate | 0.5–4.0 | 1524 |
These Inconel 601 sheets and plates find extensive use in industries that demand exceptional heat and corrosion resistance. They are particularly well-suited for gas turbines, furnace components, chemical processing equipment, heat exchangers, and aerospace structures, where high temperatures and oxidative conditions are the norm. Moreover, these sheets and plates are also utilized in power generation, nuclear reactors, and automotive exhaust systems due to their durability and thermal stability. Inconel 601 is easy to fabricate and weld, making it an excellent option for custom industrial applications. These attributes ensure long-term reliability and performance in even the most demanding environments.
