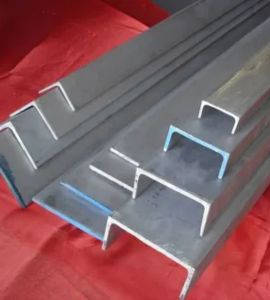

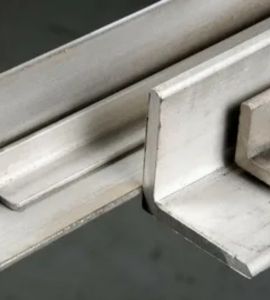

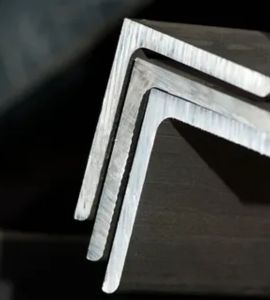

Ahmed Sheets and Plates is a reputable manufacturer and supplier of top-notch Inconel 600 Angles based in Safat, Kuwait. They specialize in creating nickel-chromium alloy structural components that are renowned for their outstanding corrosion resistance, impressive strength, and excellent performance even in high-temperature conditions. The company takes pride in producing meticulously engineered Inconel 600 Angles that adhere to international industrial standards, ensuring reliable performance in even the most demanding applications. With state-of-the-art manufacturing facilities and a talented technical team, Ahmed Sheets and Plates guarantees superior dimensional accuracy, consistent quality, and a long service life for every product. Their commitment to quality and timely delivery makes them a trusted source for high-performance Inconel structural components.
Inconel 600 Angles are primarily made up of nickel and chromium, with trace amounts of iron, manganese, silicon, and carbon to boost their mechanical strength, corrosion resistance, and thermal stability. These angles showcase excellent tensile strength, high ductility, and remarkable toughness, even when exposed to elevated temperatures. Inconel 600 is known for its exceptional resistance to oxidation, scaling, and chemical attacks, making it a perfect choice for structural applications in harsh and high-temperature environments. Its thermal stability and durability ensure long-lasting reliability and performance.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 600 | 2.4816 | N06600 | NCF 600 | NA 13 | МНЖМц 28-2,5-1,5 | NC15FE11M | NiCr15Fe |
| Element | Ni | C | Mn | Cu | S | Si | Cr | Fe |
| Inconel 600 | 72.0 min | 0.15 max | 1.0 max | 0.5 max | 0.015 max | 0.5 max | 14.0 – 17.0 | 6.0 – 10.0 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | Hardness (Brinell) |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 600 Angle offers several advantages, including excellent resistance to oxidation and corrosion, particularly in high-temperature environments. Its ability to withstand extreme temperatures up to 2,000°F (1,093°C) makes it ideal for applications in industries such as aerospace, chemical processing, and power generation. The alloy exhibits high strength and durability, maintaining its mechanical properties even under stress. Additionally, Inconel 600 is highly resistant to sulfur compounds and chloride stress corrosion cracking, ensuring long-term performance and reliability. These qualities make it a preferred material for demanding and harsh environments.
Yes, we offer custom sizes for Inconel 600 Angle to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) | Inconel Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 600 Angles find their place in various industries that demand superior corrosion resistance, mechanical strength, and heat tolerance. They are commonly used in chemical processing equipment, heat exchangers, petrochemical plants, and marine engineering. Additionally, these angles are utilized in aerospace components, power generation units, and industrial machinery that face high stress, heat, or corrosive chemicals. Their excellent formability, durability, and resistance to stress-corrosion cracking make Inconel 600 Angles ideal for constructing structural frameworks, pressure vessels, supports, and specialized industrial components in highly demanding environments.
