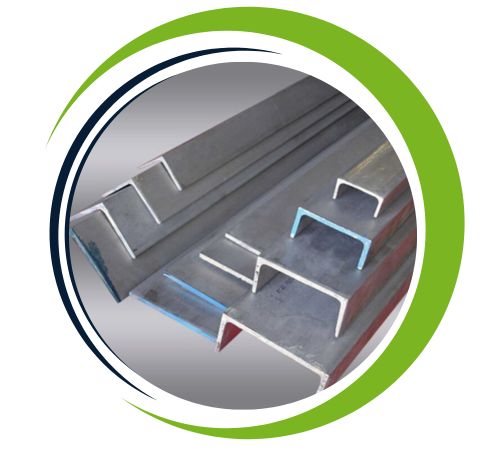

Ahmed Sheets and Plates is a reputable manufacturer and supplier of Carbon Steel EN Series Channel based in Safat, Kuwait. They specialize in providing high-quality structural solutions that are built for strength, durability, and versatility. With a strong focus on engineering excellence, the company produces channels using advanced techniques to guarantee consistent mechanical performance and precise dimensions. Their EN Series channels are celebrated for their impressive load-bearing capacity, weldability, and toughness, making them perfect for a wide range of construction and industrial applications. Ahmed Sheets and Plates caters to various sectors, including infrastructure development, machinery fabrication, automotive, and engineering, delivering dependable products that align with international standards and meet customer expectations.
The Carbon Steel EN Series Channel primarily consists of carbon, manganese, and silicon, with carefully controlled levels of sulfur and phosphorus to boost machinability and overall performance. This series boasts excellent mechanical properties, such as high tensile and yield strength, remarkable hardness, and good impact resistance. Additionally, the material offers strong weldability and formability, making it easy to shape and fabricate. Its robust structural integrity allows it to endure heavy loads and stress, making EN Series channels ideal for demanding environments and long-term structural applications.
| Specifications | : | ASTM |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Carbon Steel En Series Angle | : | 5mm to 9mm |
| Carbon Steel En Series Channel | : | 40mm*20mm~300mm*300mm |
| Carbon Steel En Series Beam | : | 3″ thru 12.31″ |
| Carbon Steel En Series Chain | : | 1/8 inch – 1/2 inch Diameter |
| Thickness | : | 3.0mm – 120mm |
| Length | : | 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes |
| Type | : | Angle, C Channel, U Channel, H Beam, I Beam, T Beam, W Beam, Chain |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Carbon Steel EN Series Channel offers several advantages, including high strength, durability, and excellent load-bearing capacity, making it ideal for structural applications. Its versatile mechanical properties allow for easy fabrication, welding, and machining, ensuring suitability for a wide range of industries, from construction to manufacturing. The channel’s resistance to wear and corrosion further extends its lifespan, making it a cost-effective solution for long-term projects. Additionally, the EN Series Channel’s availability in various grades ensures it can meet specific strength and performance requirements, offering reliable and efficient solutions in demanding environments.
Yes, we offer custom sizes for Carbon Steel EN Channel to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Grade | HEAT TREATMENT | CORRESPONDING SPECIFICATION | |||||
| Hardening Temperature | Quenching Medium | Tempering Temperature | Brinell Rock well hardness | JAPAN JIS | AISI | POLDI THREAD | |
| EN-1A | – | – | – | – | – | – | – |
| EN-8 | 750-900 | OIL | 150-200 | ||||
| EN-9 | 850-900 | OIL | 200-250 | 55-60 | |||
| EN-19 (V 320) | 900-950 | OIL | 200-225 | 45-55 | SCM 4 | 4140 | |
| EN-24 (V 130) | 830-860 | OIL | 540-680 | 45-55 | SNCM 8 | 4340 | |
| EN-31 R-100 | 820-860 | OIL | 180-225 | 59-65 | |||
| EN-36C E-200 | 780-860 | OIL | 170-210 | 61-63 | SNC 22 | 3415 | |
| EN-42 | 600-700 | DIRECT HARDENING | 40-45 | ||||
| EN-44 | 650-750 | OIL | 150 | 45-50 | |||
| EN-45 | 830-860 | OIL | 470-520 | 50-55 | 9255 | ||
| EN-351 | 850-860 | OIL | 175-200 | 62-64 | |||
| EN-353 | 840-870 | OIL | 150-200 | 62-64 | |||
Due to its strength and reliability, Carbon Steel EN Series Channel is widely utilized in the construction and engineering sectors. It’s commonly used for building frameworks, support structures, bridges, and architectural components that require high load-bearing capabilities. In the manufacturing industry, it’s favored for machinery parts, equipment bases, conveyor systems, and the fabrication of industrial structures. The automotive sector employs these channels for chassis components, support brackets, and reinforcement structures. They also find applications in railways, shipbuilding, storage systems, and heavy-duty racks, making them a versatile choice for various projects.
