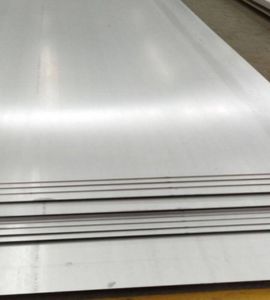

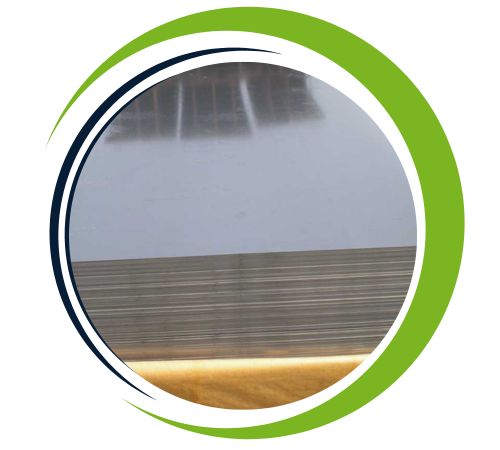

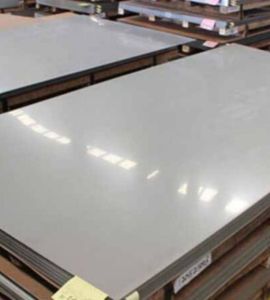

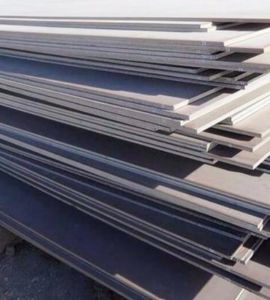

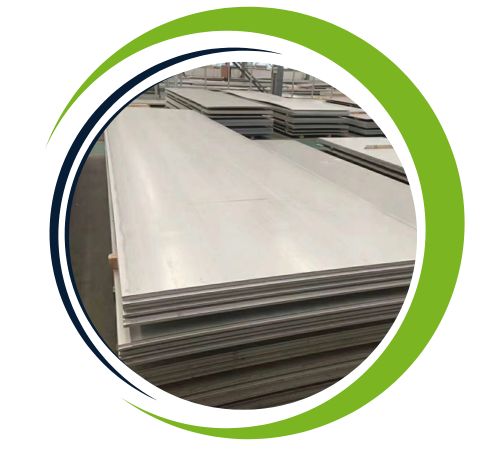

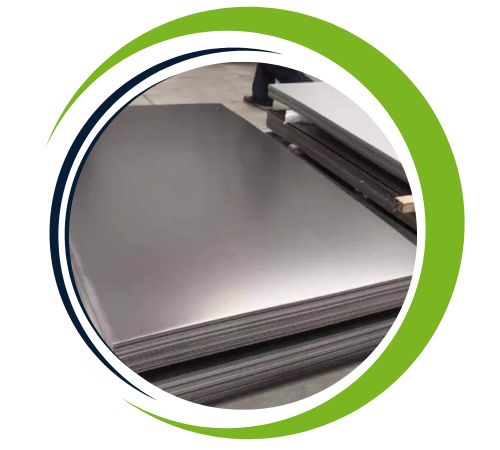

Ahmed Sheets and Plates, based in the industrial heart of Safat, Kuwait, stands as your trusted partner for high-grade steel solutions. We are pleased to offer our premium C50 High Carbon Steel Sheets and Plates, a testament to our commitment to quality and durability. Ideal for demanding industrial applications, this material is engineered to deliver exceptional performance and reliability, ensuring your projects are built to the highest standards of strength and longevity.
The composition of C50 steel includes a carefully balanced mix of carbon, manganese, and silicon, creating a robust alloy. Mechanically, this High Carbon Steel is known for its impressive strength and excellent wear resistance. It can be hardened through heat treatment to achieve even greater toughness, making these sheets and plates capable of withstanding significant stress and heavy loads without compromising their structural integrity over time.
| Thickness Range | 0.10 – 5.00 MM |
| Width Range | 5.00 – 1250 MM |
| Form | Can be supplied in Coil or Sheet form |
| Sheet Length (CTL) | 300 – 3000 MM |
| Edge | Mill edge or Sheared edge |
| Coil / Sheet Pallet Weight | Weight of each Coil or Sheet pallet can be customized as per customer’s need |
| Coil ID / OD | ID or OD of each Coil can be customized as per customer’s need |
| Packing | High-end export packing for sea or road travel, completely safe during transit. Duly oiled with anti-rust oil, wrapped in hessian cloth & high-density plastic sheets to prevent moisture. Further strapped with high tensile strips. For identification & tracing, non-erasable polyester stickers are placed on each material |
| Delivery Time | Dispatched within 10 days to 2 months, depends upon the required size |
| Some Applications | Auto components such as Washers, Clutch components, various types of Springs, Pen Clips, Hanger Clips, Cycle/Motor Chains, etc. |
Element |
C |
Si |
Mn |
P |
S |
Cr |
Cu |
Ni |
Content (%) |
0.47 – 0.55 |
0.17 – 0.37 |
0.50 – 0.80 |
0.03 |
0.03 |
0.15 |
0.25 |
0.30 |
GRADE |
Tensile Strength min |
Yield Strength min |
Elongation min. |
contraction min |
impact min |
Hardness Max |
|
σb/M Pa |
σs/M Pa |
δ5/% |
ψ/% |
Akv/J |
Without heating |
annealing |
|
C50 |
630 |
375 |
14 |
40 |
31 |
241 |
207 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
C50 High Carbon Steel Plates offer numerous advantages, including superior strength and hardness, making them ideal for heavy-duty industrial applications. Their high tensile and yield strength ensure excellent load-bearing capacity, while their wear resistance provides durability in demanding environments. C50 plates also offer good machinability, allowing for easy fabrication and customization for specific applications. The steel’s exceptional toughness and ability to withstand high-stress conditions make it perfect for use in components like gears, shafts, and machinery. Additionally, C50 High Carbon Steel Plates are cost-effective, providing long-lasting performance and reliability.
Yes, we offer custom sizes for C50 High Carbon Steel Sheet and Plates to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| SAE / AISI – American | SAE 1050 |
| DIN – Germany | C50 / CK50 |
| EN – English / BS – British | – |
| JIS – Japanese | S50C |
| UNI – Italy | C50 |
These sheets and plates are perfectly suited for creating high-stress components like gears, heavy-duty springs, and machine parts where exceptional strength is non-negotiable. You’ll often find them in the manufacturing of heavy machinery, certain automotive parts, and robust construction equipment. Their durability makes them an excellent choice for applications that demand a material which can endure constant friction and impact without faltering.
