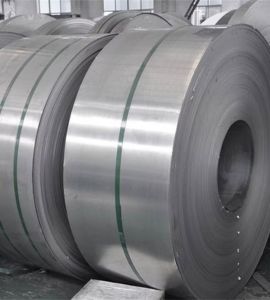

Ahmed Sheets and Plates is a reputable manufacturer and supplier of top-notch Alloy C263 Foils based in Safat, Kuwait. They offer products that are not only corrosion-resistant but also heat-resistant and high-performing, thanks to their nickel-based alloy composition. The company takes pride in crafting precisely engineered Alloy C263 Foils that adhere to international industrial standards, ensuring reliable performance even in the most demanding applications. With state-of-the-art manufacturing facilities and a talented technical team, Ahmed Sheets and Plates guarantees exceptional dimensional accuracy, consistent quality, and a long service life for every foil they produce. Their commitment to quality, timely delivery, and customer satisfaction has established them as a trusted source for premium nickel alloy products.
Alloy C263 Foils are primarily made up of nickel, chromium, cobalt, and aluminum, with small amounts of iron, molybdenum, and titanium added to boost mechanical strength, oxidation resistance, and high-temperature performance. These foils are known for their impressive tensile strength, creep resistance, and toughness, all while maintaining good ductility. Alloy C263 stands out for its excellent resistance to high-temperature oxidation, corrosion, and thermal fatigue, making it a perfect choice for long-term applications in aerospace, power generation, and various industrial sectors.
| Standard Specification : | AMS 5872 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | Ni | Co | Cr | Mo | Ti | Fe | Mn | Al | Si | Cu | C | B | S |
| Alloy C263 | 49 | 19-21 | 19-21 | 5.60-6.10 | 1.90-2.40 | 0.70 | 0.60 | 0.60 | 0.40 | 0.20 | 0.040 – 0.080 | 0.0050 | 0.0070 |
| Material | Temp °C | Yield Strength (Mpa) | Tensile Strength (Mpa) | Elongation % | Hardness HRC |
|---|---|---|---|---|---|
| Alloy C263 Solution Treated (AMS 5872 / BS HR206) | RT | – | – | – | 22.5 max |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | RT | 580 (typical) | 973 (typical) | 39 – | |
| Alloy C263 Heat Treated (AMS 5872 / BS HR206 | 780 | 403 (min) | 541 (min) | 9 | – |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Properties | Metric | Imperial |
|---|---|---|
| Density | 8.359 g/cm3 | 0.302 lb/in3 |
| Melting point | 1300-1335°C | 2372-2471°F |
Alloy C263 foil provides excellent advantages for high temperature applications. It provides outstanding resistance to oxidation and creep, making it ideal for aerospace and industrial applications. The high weldability and formability of the alloy ensures easy fabrication in complex shapes. Its excellent thermal stability and resistance to cracking under thermal cycling enhances reliability in extreme conditions. Additionally, alloy C263 exhibits corrosion and oxidation resistance up to 980°C (1800°F), providing long durability. Its combination of strength, ductility and thermal performance makes it desirable in gas turbines and heat treatment equipment.
You’ll find Alloy C263 Foils widely utilized in industries that demand high-temperature strength, corrosion resistance, and durability. They are commonly found in gas turbine components, combustion chambers, jet engine parts, heat exchangers, and aerospace equipment. Additionally, these foils play a crucial role in power generation, chemical processing, and other industrial applications that face extreme temperatures and corrosive environments. Their remarkable formability, durability, and high-temperature performance make Alloy C263 Foils an ideal choice for critical and demanding applications in both aerospace and high-performance industrial settings.
